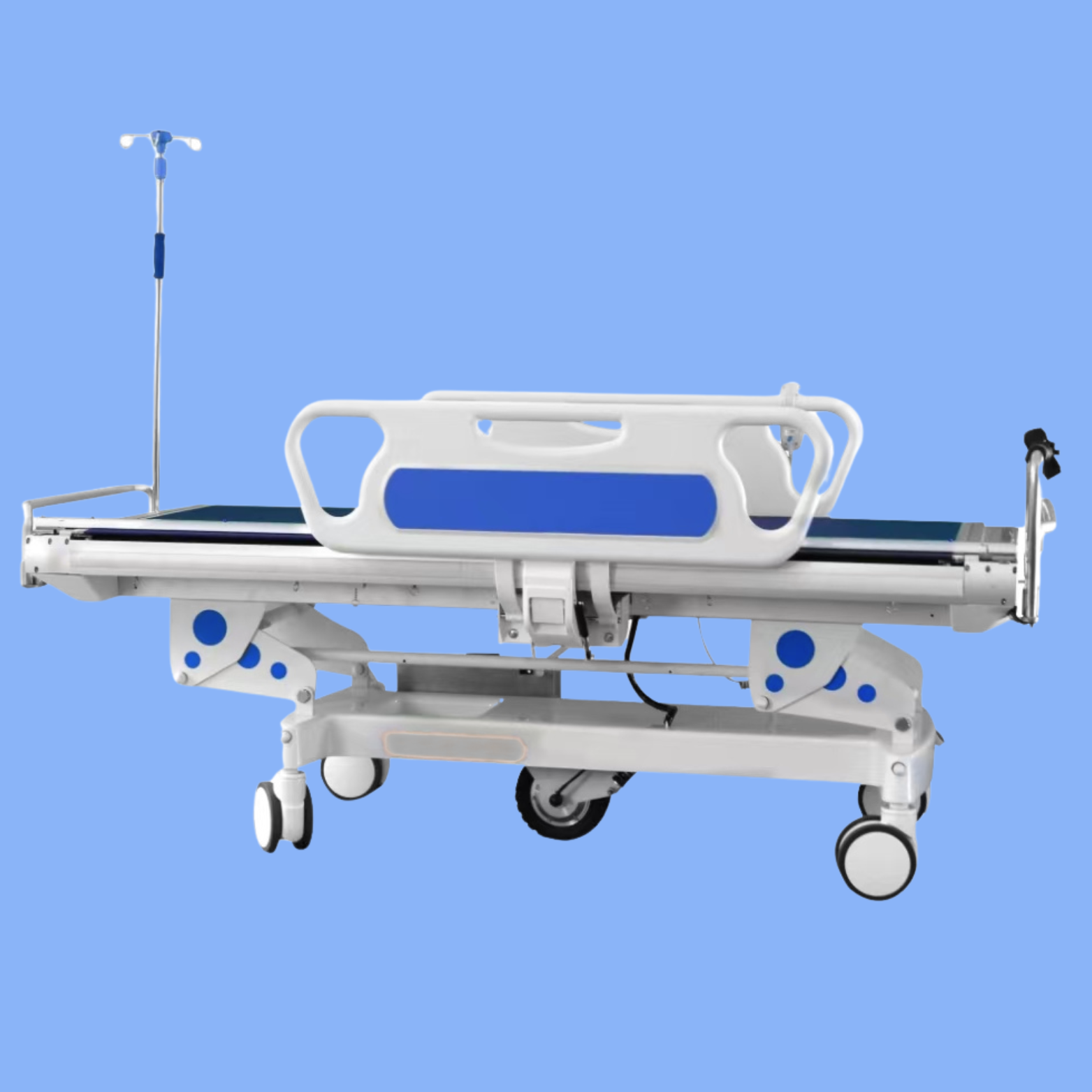

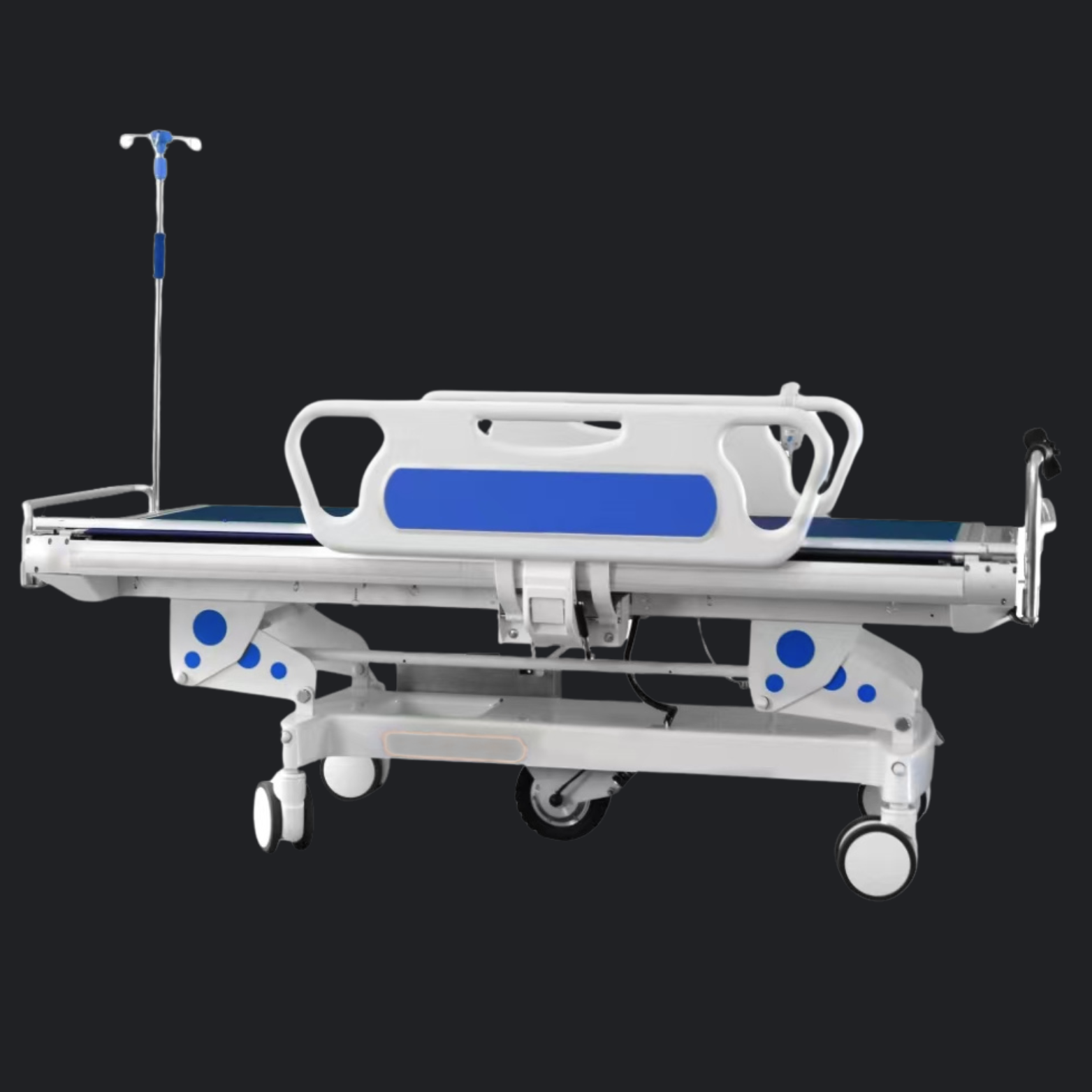

Mahoraga Continuum⢠Platform Model Specification Comparison
Primary Application
Bariatric & High-Capacity Environments
Advanced Clinical Care & General Use
Max Load Capacity
200 kg (440 lbs) / 500 lbs
130 kg (286 lbs)
Transfer Board
11mm Ultra-Thin, Extra-Wide Board (Made from 5mm high-strength composite)
11mm Ultra-Thin Board (Made from 5mm high-strength composite)
Dimensions (L x W)
2140 x 666 mm (L) / 2140 x 816 mm (XL)
1930 x 685 mm
Lifting Range (Vertical)
500 mm - 850 mm
570 mm - 910 mm
Extension Range (Horizontal)
535 mm (L) / 680 mm (XL, Wider for Bariatrics)
510 mm
Control System
Standard Push-Button Controls
Full-Color HMI Touchscreen
Patient Comfort
Standard Board
Integrated Board Warmer Function
Key Features
Unmatched weight capacity for the most demanding
Agile frame with a greater lift range and advanced smart
Patented Seamless Eazy-Glide⢠Technology
Yes
Motorized Drive System
Power-Assisted Electric Drive for effortless forward & reverse
Safety System
Automatic Push/Pull Safety Stop & Power-On Self-Diagnostics
Hygiene & Maintenance
Quick-Change System for sterile transfer sheets
Battery System
(12V, 23Ah) x 2
Charger Specifications
Input: 100-240VAC, 50/60Hz
Operating Temperature
-10°C to +40°C (14°F to 104°F)
